5V2.4A power solution, MIX-DESIGN MC1109 MD4200 safety model information
Source: MIX-DESIGN 美思迪赛 Date:2019-12-12 Views:2704

MC1109 + 4200 5V 2.4A safety power supply schematic diagram (as shown below)


5V2.4A power solution, MIX-DESIGN MC1109 MD4200 safety model information

MC1109 + MD4200 BOM List
Product specifications 5V2.4A
(three windings of the transformer)
Input: 90 ~ 264Vac; Output: 5V2.4A (safety products)
primary
No. Q’ty Location Discription Pacakge Remark
1 1 C1 10uF, 400V, Electrolytic 105 ℃ Φ8 * 12
2 1 C2 15uF, 400V, Electrolytic 105 ℃ Φ10 * 13
3 1 C3 22uF, 50V, low-ESR Electrolytic 105 ℃ Φ5 * 11
4 1 C5 Capactor SMD 471, 500V   0805 10% 0805
5 1 C8 Capactor SMD 103 or 224 , 25V   0603 10% 0603
6 1 D1 SMD A7 1000V / 1A, SOD-123 SOD-123
7 1 D2 SMD F7 1000V / 1A, SOD-123 SOD-123
8 1 L1 Choke coil   330uH 1W Axial
9 1 L2 Choke SMD   10uH 0805   5% 0805
10 1 RF1 Resistor 3.3Ω Φ3.6 * 10 Axial
11 1 T1 Transformer, EF1510, Widened, (Slot width 6.4MM) EF15
12 1 CY1 Y1 CAP 102   1000PF pitch 9.5mm DIP
13 1 U1 MC1109 SOIC-7 SMD SOIC-7
14 1 BD1 MB10F 1000V / 1A Bridge SO-4
15 2 R1 R2 Resistor SMD 1. 5 M 0805   5% 0805
16 1 R3 Resistor SMD 1.6 0 R 1206 1% 1206
17 1 R4 Resistor SMD 1.8 0 R 0805 1% 0805
18 1 R5 Resistor SMD 330K 0805   5% 0805
19 1 R6 Resistor SMD 220R   0805   5% 0805
20 1 R9 Resistor SMD 5.1 K 0603 1% 0603
21 1 R10 Resistor SMD 6.8K 0603 1% 0603
22
Secondary
No. Q’ty Location Discription Pacakge Remark
23 2 C7, C12 560 uF, 6.3 V, Solid capacitors, 105 ℃ Φ6.3 * 9
24 1 USB USB DIP
25 1 U2 MD4200 SOIC-8 SMD SOIC-8
26 1 R11 Resistor SMD 5.6K 0805 5% 0805
27 1 R12 Resistor SMD 10K 0603   5% 0603
28 1 R14 Resistor SMD 2.2K 0805 5% 0805
29 1 R15 Resistor SMD 22R 0603   5% 0603
30 1 C10 Capactor SMD 471,50V 0603   10% 0603

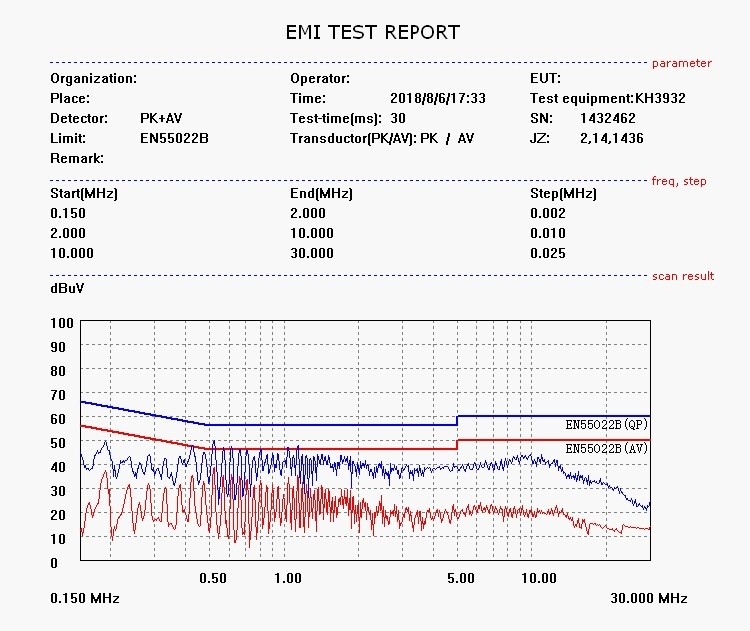

MC1109 + 4200 5V2.4A unshielded radiation conduction test 5V2.4A CE-L (as shown below)


5V2.4A power solution, MIX-DESIGN MC1109 MD4200 safety model information

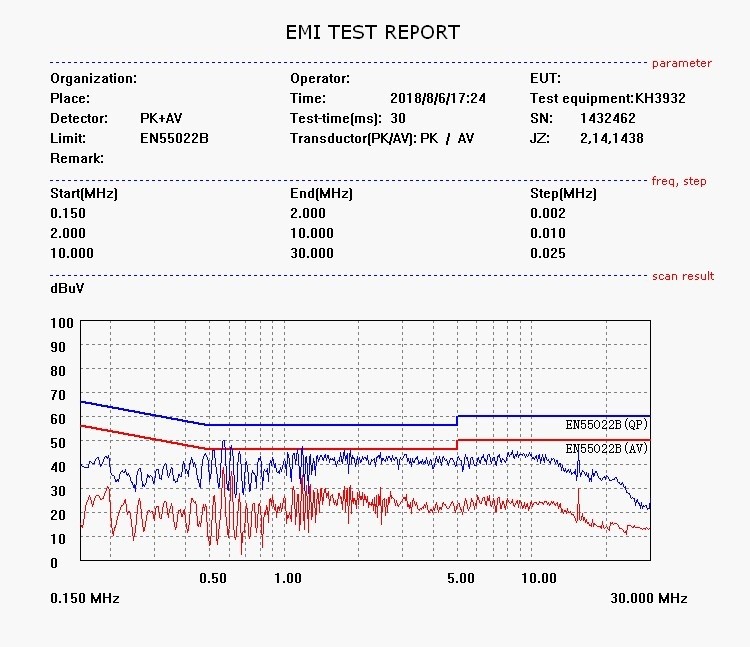

MC1109 + 4200 5V2.4A unshielded radiation conduction test 5V2.4A CE-N (as shown below)


5V2.4A power solution, MIX-DESIGN MC1109 MD4200 safety model information

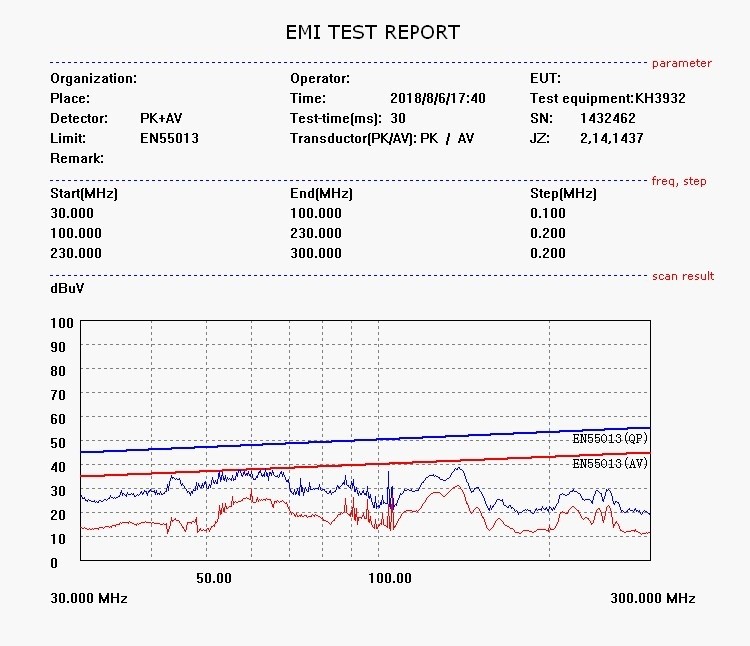

MC1109 + 4200 5V2.4A unshielded radiation conduction test 5V2.4A RE-L (as shown below)


5V2.4A power solution, MIX-DESIGN MC1109 MD4200 safety model information

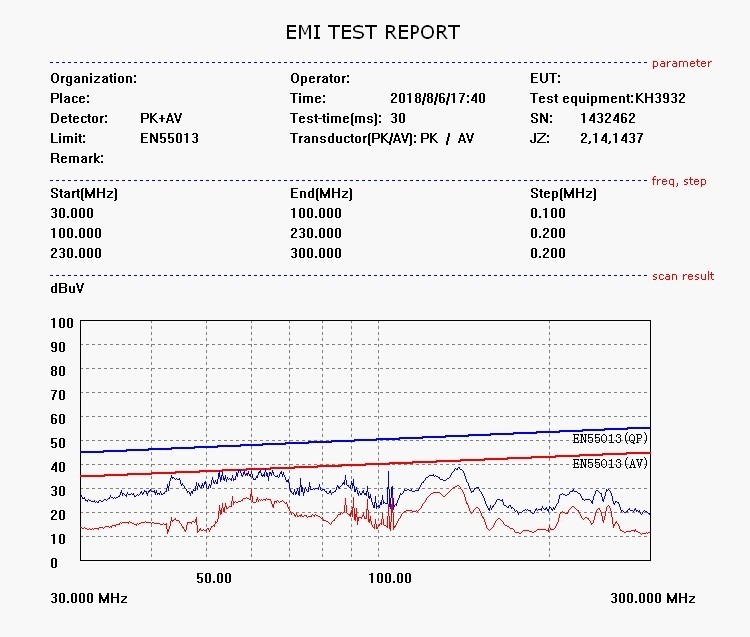

MC1109 + 4200 5V2.4A unshielded radiation conduction test 5V2.4A_RE-N (as shown below)


5V2.4A power solution, MIX-DESIGN MC1109 MD4200 safety model information
