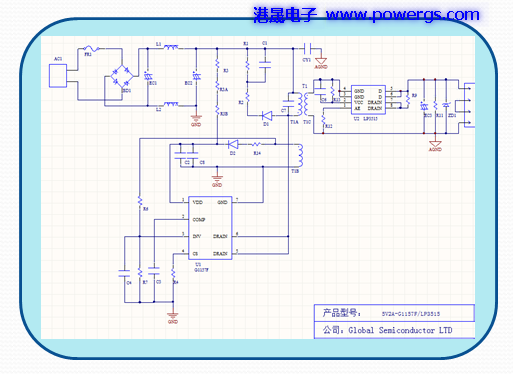

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F
Source: Date:2018-11-25 Views:2530

Input: 90V-264V;
Output: 5V2A;
Main components: Transformer: EE1409; Synchronous rectification: LP3515; IC: G1157F;
Wire: PCB end.



5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F

5V 2A USB solution circuit diagram BOM list, Global Semi. G1157F
