CT Micro Company Profile
Dept.: Marketing
Name: HF Huang
2020’Oct
Company Overview
Founded : Registered in 2013’Feb . Major investors is from Ytec 久元電子 (6261) and
Hermes Group : Episil 漢磊 (3707).(Taiwan listed company)
Capital : USD$ 23.5 Million
Major Business Focus : Infrared Emitter and Detector
Photo Coupler
Visible LED
Employee : ~270 Globally
Factory Location : Xiamen, China, Total Capacity is 120KK/M
(CTM owner for PCB/Coupler/MOSFET)
Global Network
Germany
China
USA
Korea
Taiwan
Malaysia
History
2013
2013
2013
2014
2015
2015
2017
2018
◎ 2013’May, CT Micro setup
◎ 2013’Nov, IR/Photo Coupler MP
◎ 2013’Dec, ISO9001:2008
◎ IR/Coupler shipped more than 10KK/M
◎ 2015’Mar, MOSFET MP
◎ 2015’July, ISO14001 and OHSAS18001
◎ 2017’Apr, ISO/TS16949 LOC
◎ 2018’Jun, IATF16949:2016
Why CT Micro
◎ People,
R&D with more than 15 years of photo coupler and infrared product
experience. Manufacturing and engineering team from Fairchild and Vishay with
more than 15 years of assembly experience.
◎ CT can design our own Photo Transistor and Diode.
◎ Professional Optical R & D with optical simulation software for quicker, precise &
high quality optical products; be it standard or customized version.
◎ Partnership with Energictek for MOSFET design/development and
complement with Episil/maxchip for high quality and stable
products.
Why CT Micro
Quality Policy
Systematic Development and Production (ISO9001:2015 and IATF16949)
(IATF16949 only for IR and Photo Coupler)
Green Initiatives (ISO14001 and OHSAS18001)
◎ Zero defect approach
◎ Build by Quality during development
◎ Safety House for Photo coupler(UL/VDE/CQC)
http://www.ct-micro.com/quality10.php?id=2
IR Major Application

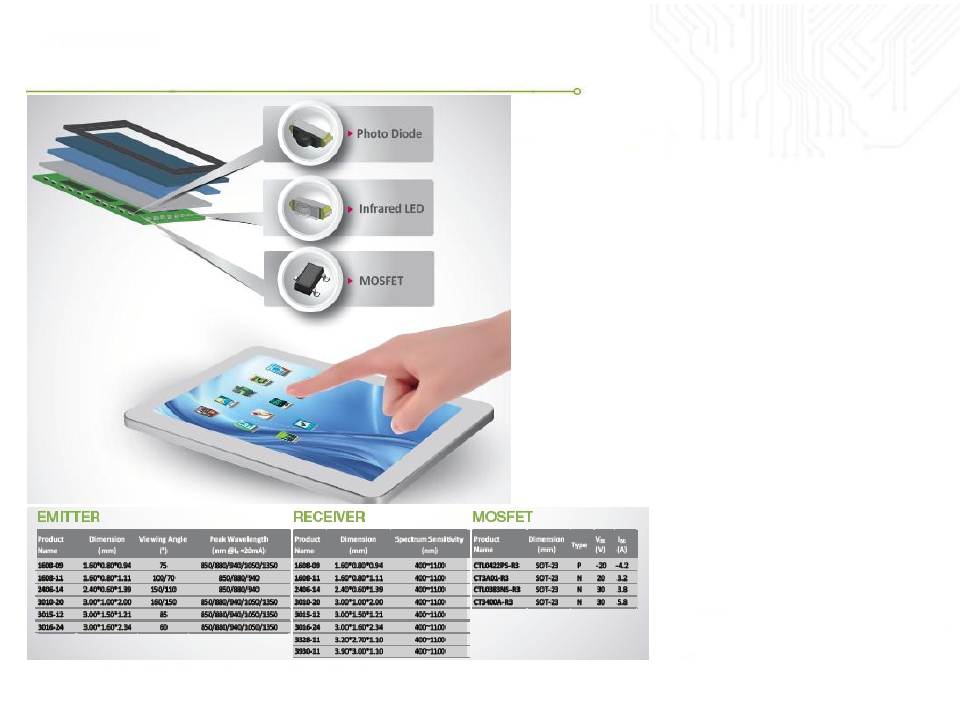

IR Touch Application
Infrared LED working with
Photo Diode or Photo Transistor

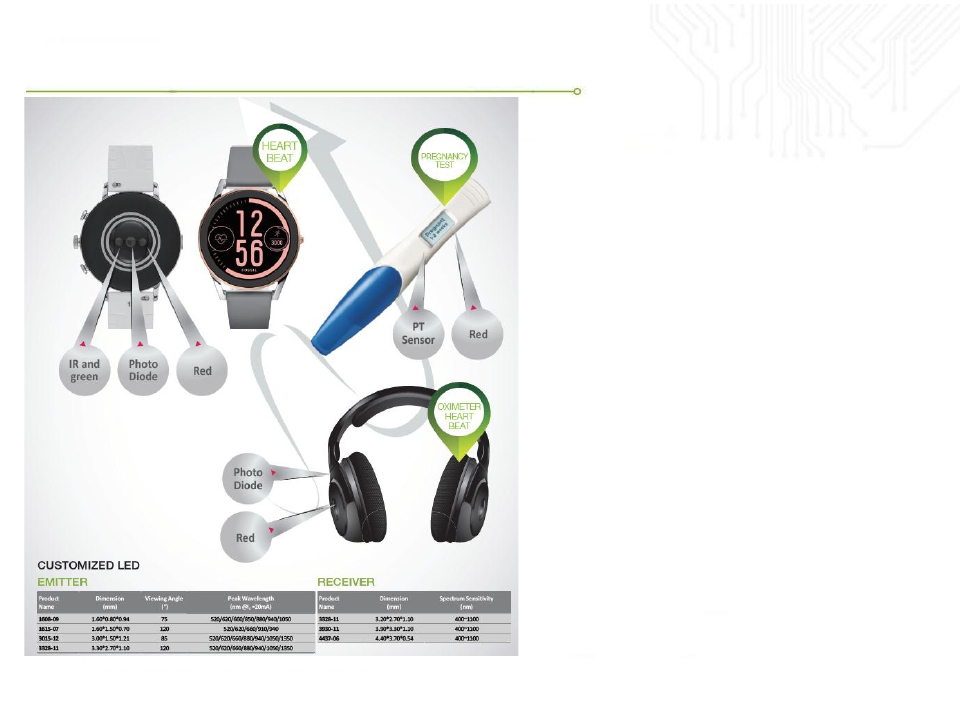

Smart Wear Application
For health management application,
Customer can use
blue / green / red /IR/VCSEL as emitter,
and Photo Diode as receiver per customer
requests.

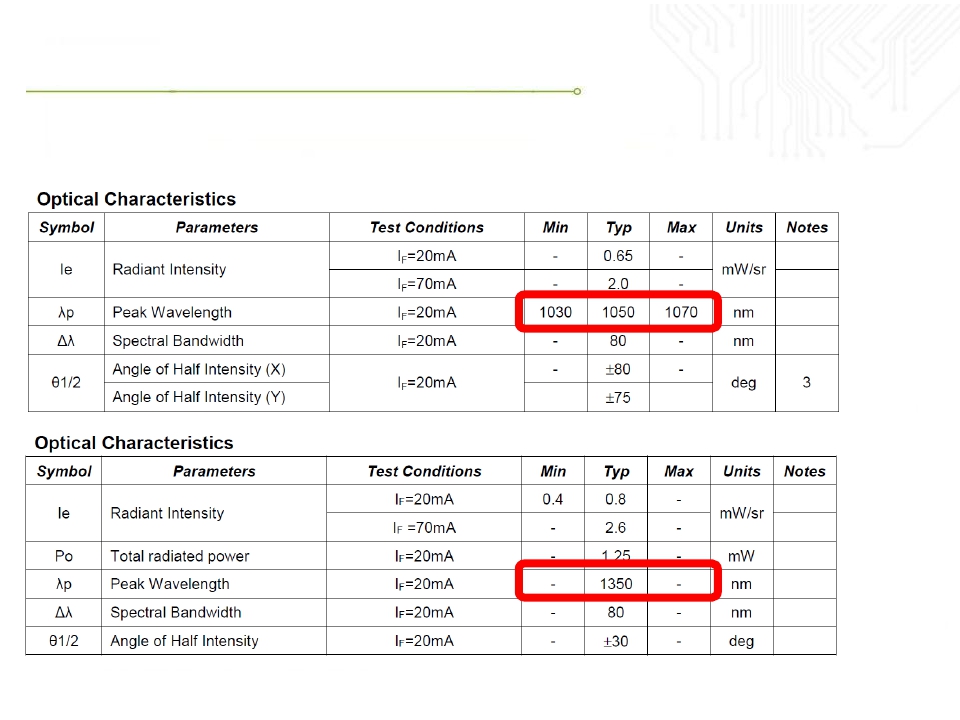

1050nm/1350nm IR LED
Special wavelength for customized applications
Next ? 1400/1600nm Samples are ready

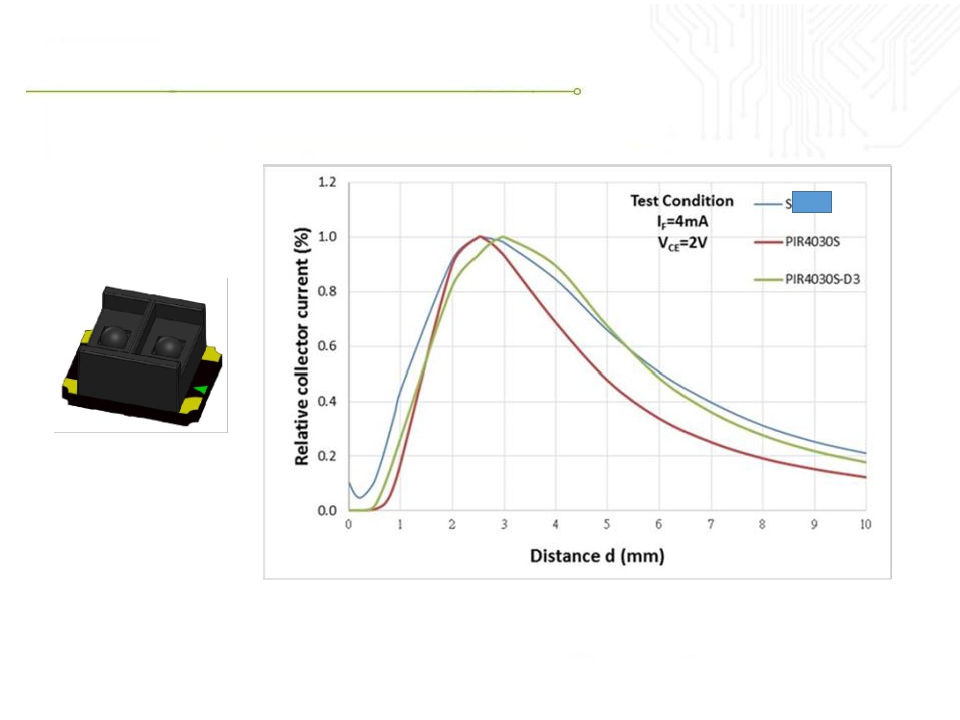

Photo Interrupter

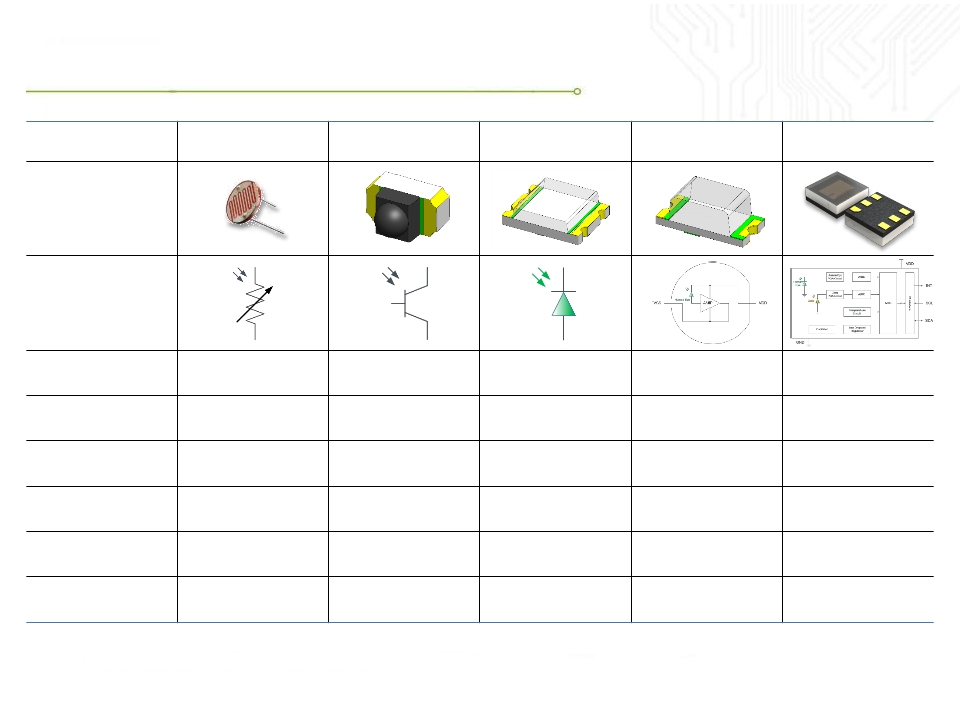

Classification of Light Detector
Item Photo Resistor Photo Transistor Photo Diode Analog Light
Sensor
Digital Light
Sensor
Outline
Functional
Block Diagram

Output Type Resistance Current Current Current ADC Count
Response
Spectral
Human Eye Non-Human Eye Non-Human Eye Human Eye Human Eye
Linearity Poor Good Excellent Excellent Excellent
Temperature
Response
Poor Poor Better than PT Good Good
Response Time Slow Slow Fast Slow Slow
Cost Low Low Low High High

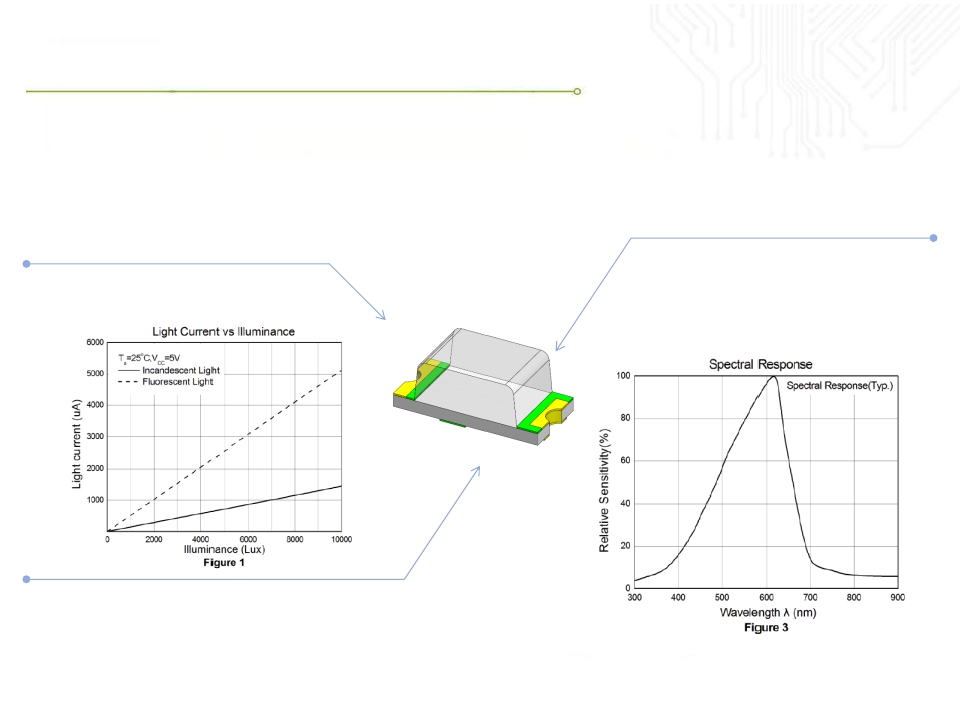

Ambient Light Sensor
APTP1708T06
Electrical Characteristic
Current output
Supply voltage range from 2.5V to 5.5V
Operating temperature from -40 °C to +85 °C
Optical Characteristic
Spectrum close to human eye response.
Very low response in infrared region.
High Performance
Ambient Light Sensor

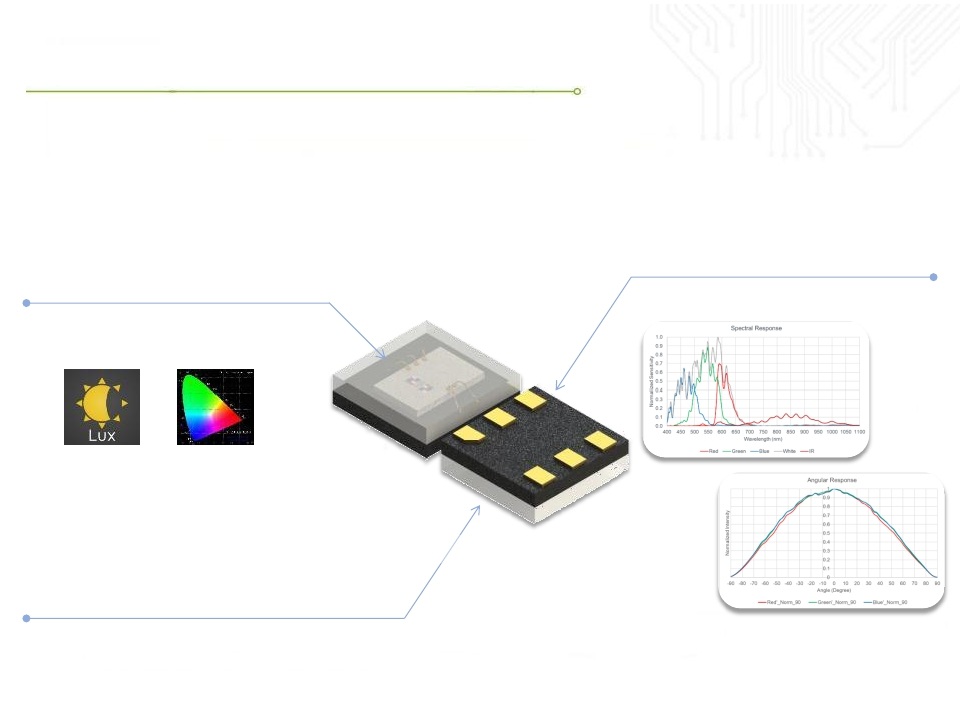

APS1616O04
Electrical Characteristic
I2C interface (400kHz/s)
Supply voltage range from 1.8V to 3.6V
Operating temperature from -40 °C to +85 °C
ADC resolution 16-bits
Optical Characteristic
R G B W IR five channel
Very high sensitivity 0.001 lux
Very wide dynamic range 300K lux
FOV over ± 50 degree
High Accuracy
Illuminance (lux) error within ± 5%
Correlated color temperature (CCT)
error within ± 5%
Color difference (duv) within 0.005
Light source type determination
1.6*1.6*0.45mm

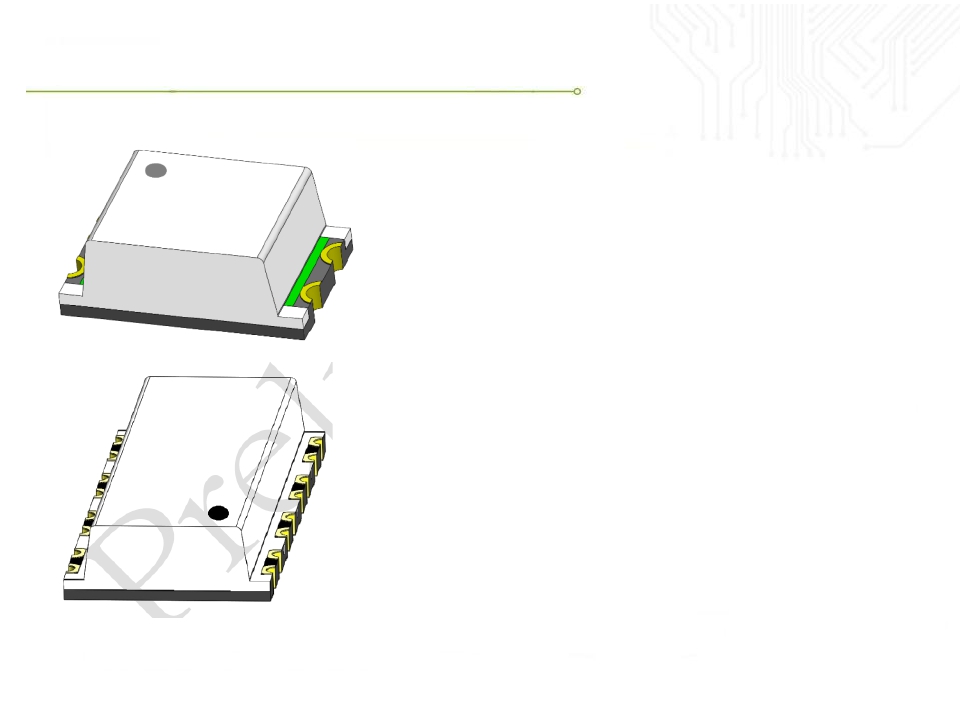

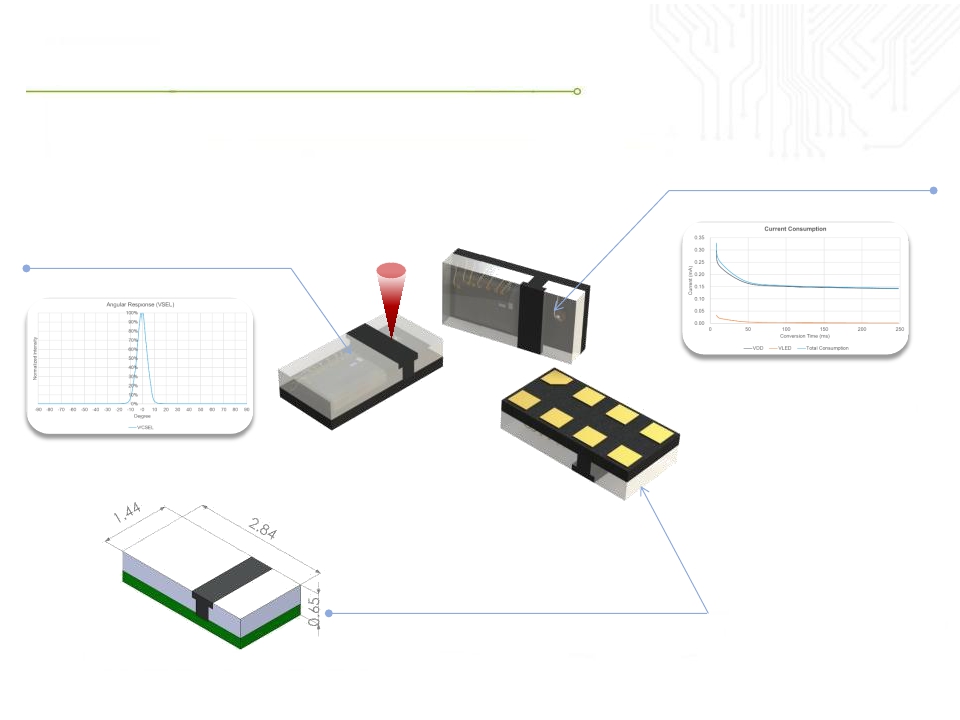

Proximity Sensor
New…. Low Consumption
12.5mA VCSEL driving current.
Total current can be within 0.2mA
Low Crosstalk
VCSEL based IR emitter w/ very small angle.
Build-in optical filter to reject the crosstalk.
Small Size
Package dimension is
2.84mm × 1.44mm × 0.65mm
Pitch of PS & VCSEL is 0.96mm
Photo Coupler
CT DMC TM Photo Coupler
Traditional Over-Under
CT DMC TM Photo Coupler
CT Micro Double-Molded Co-Plannar (DMC?)
US9,685758 B2
Features
◎ Fixed Isolation Gap
◎ Propriety Molding Compound
◎ Special Inner mold design to improve
transfer ratio
◎ Special Silicon gel for Transfer Ratio
improvement

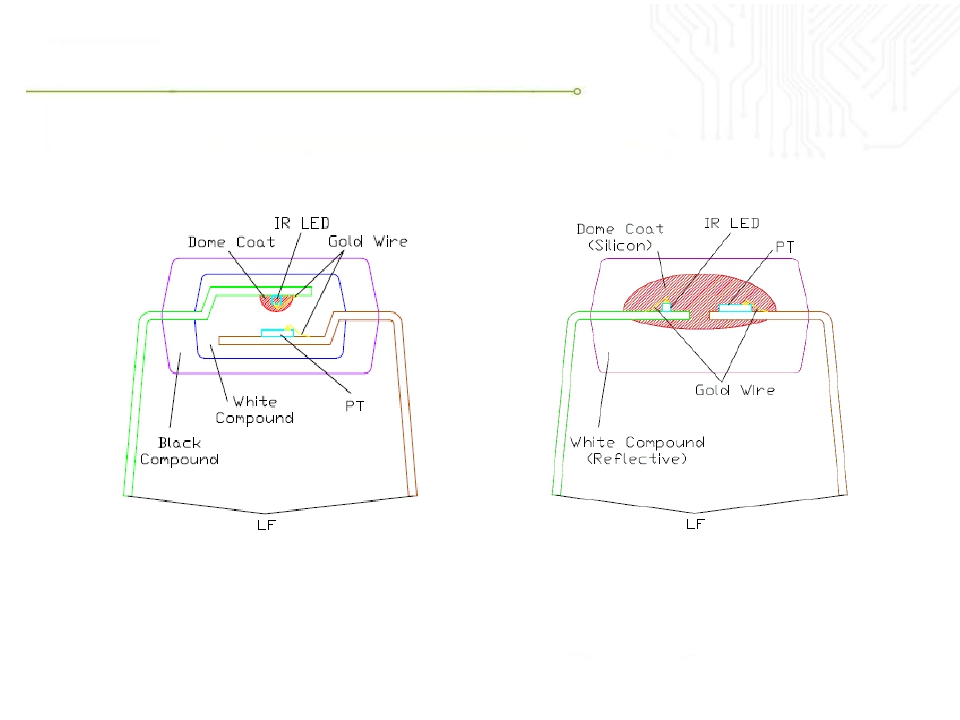

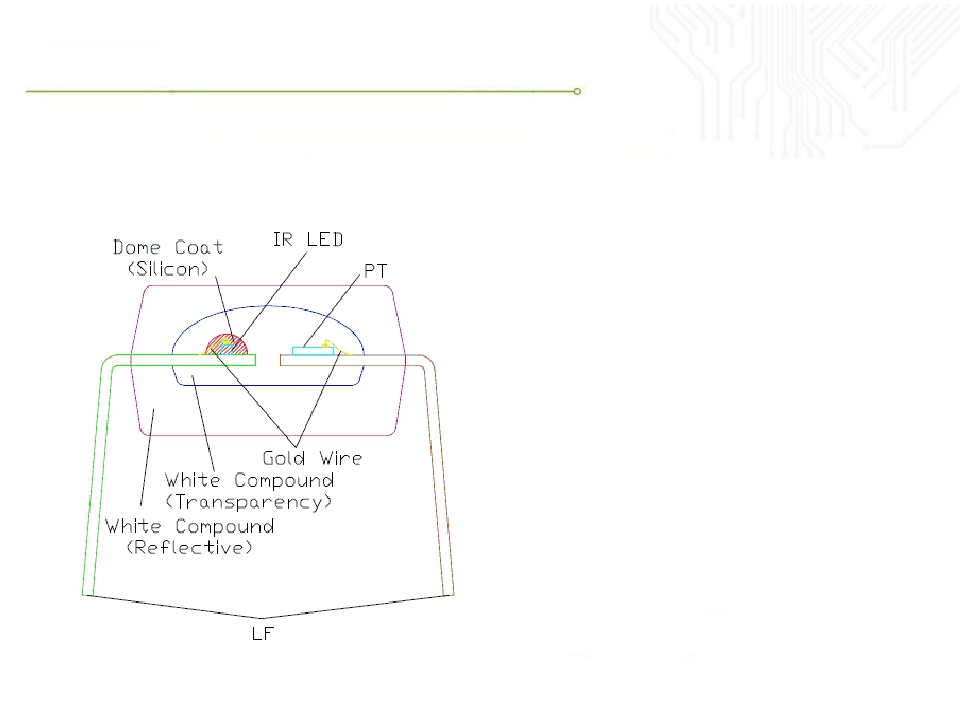

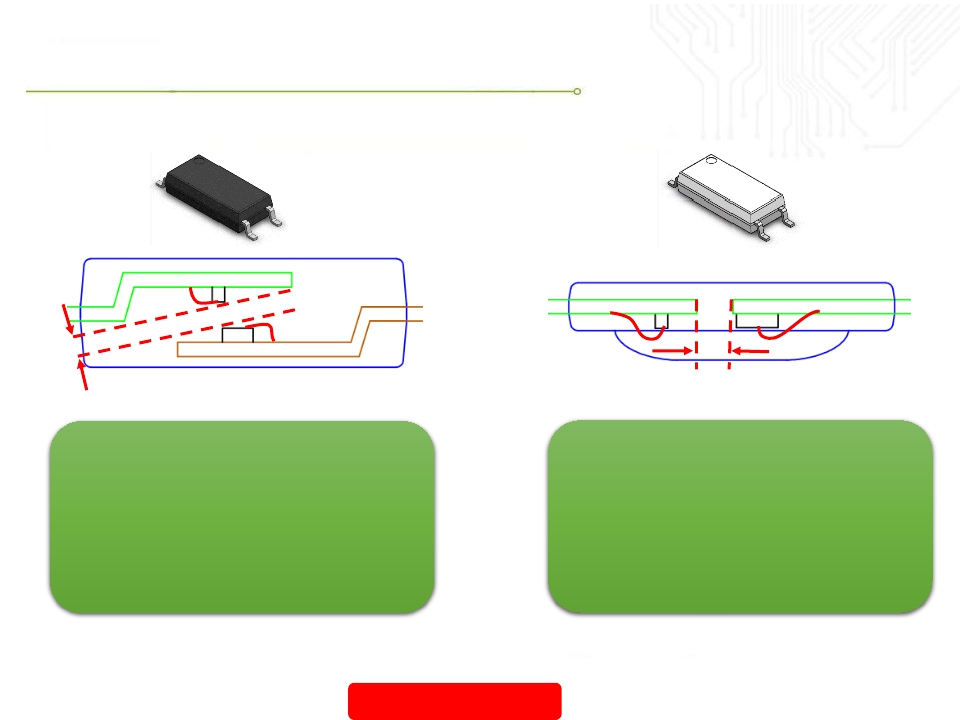

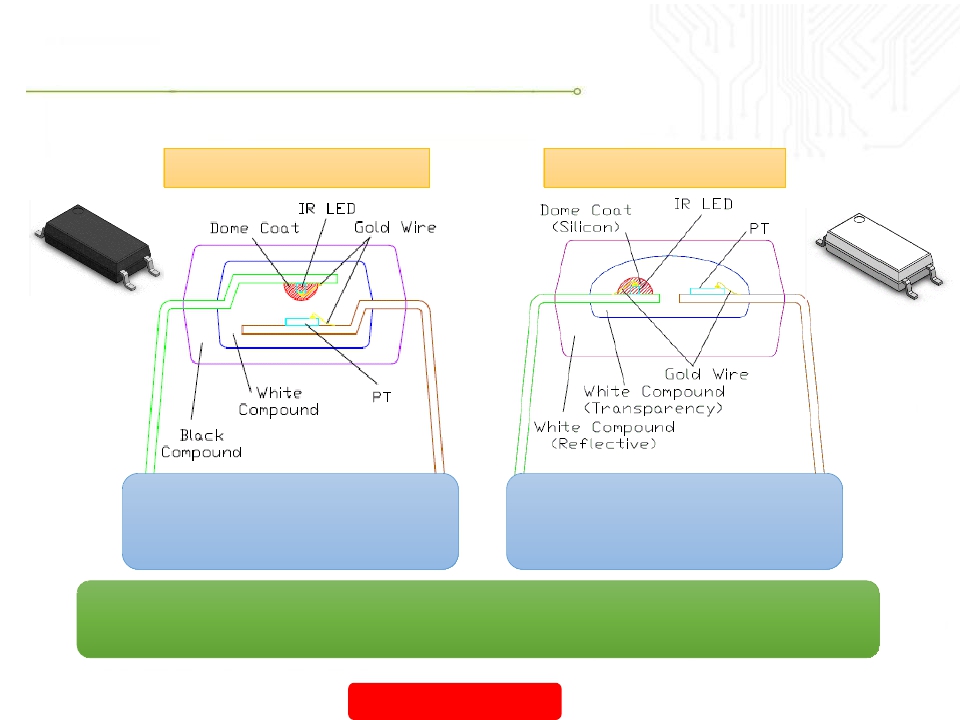

Coupler construction
Traditional Over-Under
CT DMC ? Co-Planar
Light transfer type: face to face
Hard process than Co-planar
Light transfer type: reflection
The easiest coupler process
The coupler construction design have to follow the safety house rule. Over
tolerance, and bad process control will be caused isolate fail.
Coupler FMEA
The distance through isolation of coupler is
≧0.4mm
The product LongCreepage is one
of the super thin package. All the
tolerance are restricted by the
package limit and safety request.
High of wire bond also one of the
key inspection.
Confidential
The through distance of CT DMC ?
package is trustworthy due to the
distance has done when the lead
frame forming. There is no need to
control by process.
CT DMC TM Photo Coupler
  Pros and Cons
  ConventionalUnder
Over-Under
Traditional Co-Planar CT-DMCTM PKG
CMR 共模抑制 Normal 一般 Good 很好 Good 很好
Isolation Voltage
高壓絕緣
Unstable 不穩定 Stable & Good
穩定而且很好
Stable & Good
穩定而且很好
Process
封裝製程
Hard 困難 Easy 簡單 Easy 簡單
Outline size
外觀尺寸
High Restriction
限制多
Can go small and thinness
可以做超薄且小型化的尺寸
Can go small and thinness
可以做超薄且小型化的尺寸
Cost 成本 Low High Low
CT DFN TM Photo Coupler
Features
◎ The Max thickness is 1.5mm
(max 4.2*2.7*1.5mm for one channel)
◎ Good operating temperature range
-55 ℃ ~125 ℃
◎ External creepage >2.8mm
2.5kV/min with intenal creepage >0.4mm
◎ Low input current with Good CTR
100%~400% CTR @ I F =1mA

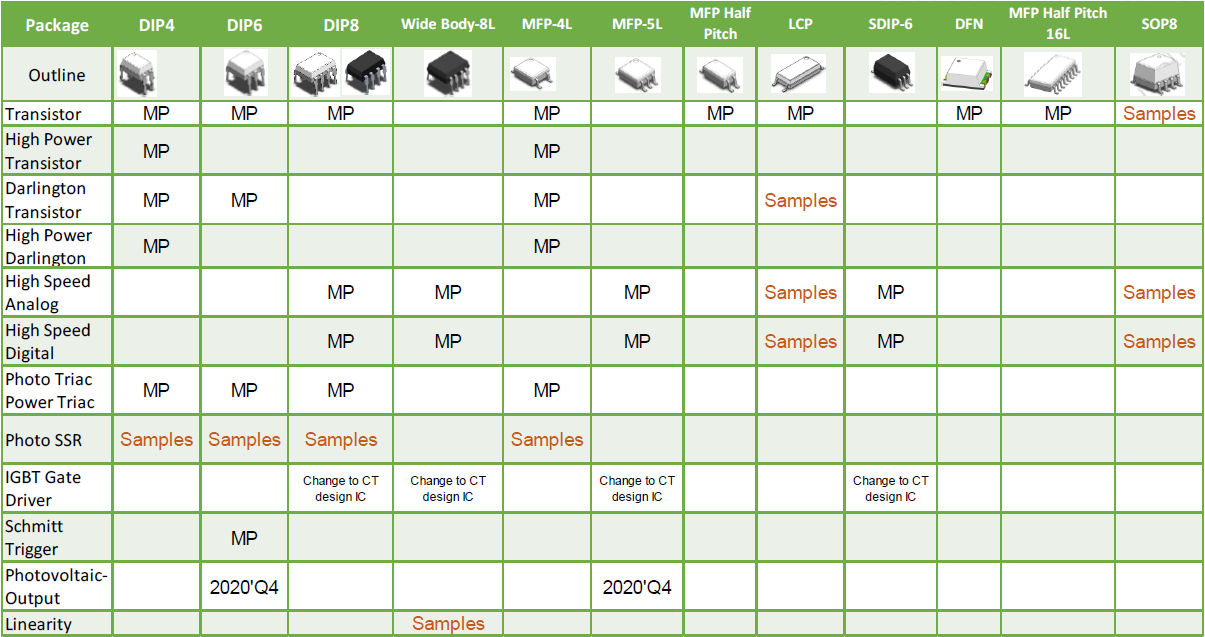

CT Photo Coupler

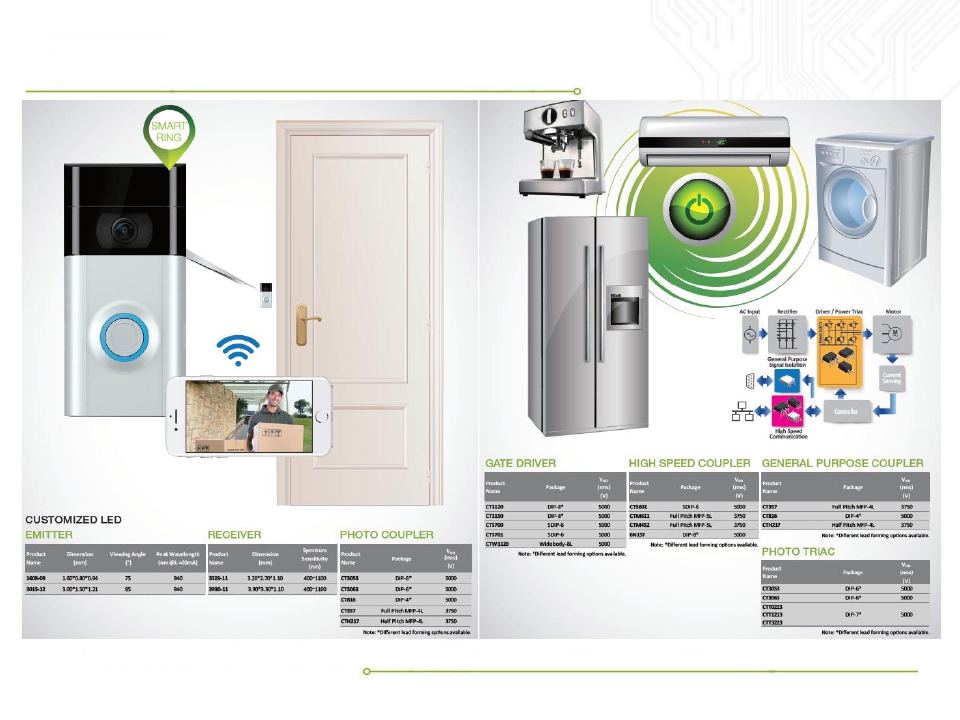

Coupler Applications
Major Customers
Major Customers
